Tile

Tile

Tile(
    data: DataType | dict[str, Any],
    *,
    items: list[TileContentItem | str] | None = None,
    widget_id: str | None = None,
    header: Header | None = None,
    show_separator: bool = True,
    orientation: Orientation = HORIZONTAL,
    height: int | float | None = None,
)

Spec for Tile Widget.

Construct spec for the Tile Widget.

Parameters:

Name	Type	Description	Default
items	list[TileContentItem | str] | None	list of items to be displayed in the tile widget.	None
widget_id	str | None	unique widget id in a dashboard.	None
data	DataType | dict[str, Any]	data to be used by widget. Accepts Storages as well as raw data.	required
header	Header | None	spec for the header in Tile widget.	None
show_separator	bool	flag to show or hide separator.	True
orientation	Orientation	orientation of items in tile widget content.	HORIZONTAL
height	int | float | None	height value for the widget. Defaults to 0.84 (84px).	None

Note

If data is a Http or a Http connector dependency, make sure that the return from the http request is a dictionary.

Examples:

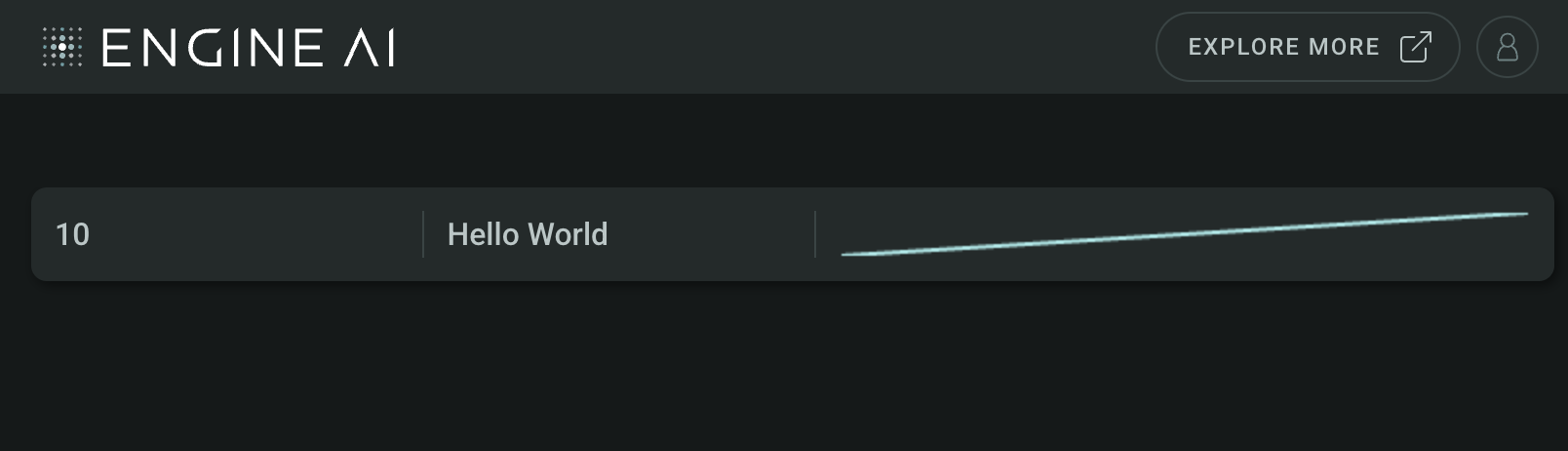

Create a minimal Tile Widget

from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import tile

data = {
    "number": 10,
    "text": "Hello World",
    "line_chart": [1, 2, 3, 4, 5],
}

tile_widget = tile.Tile(data=data)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=tile_widget,
)

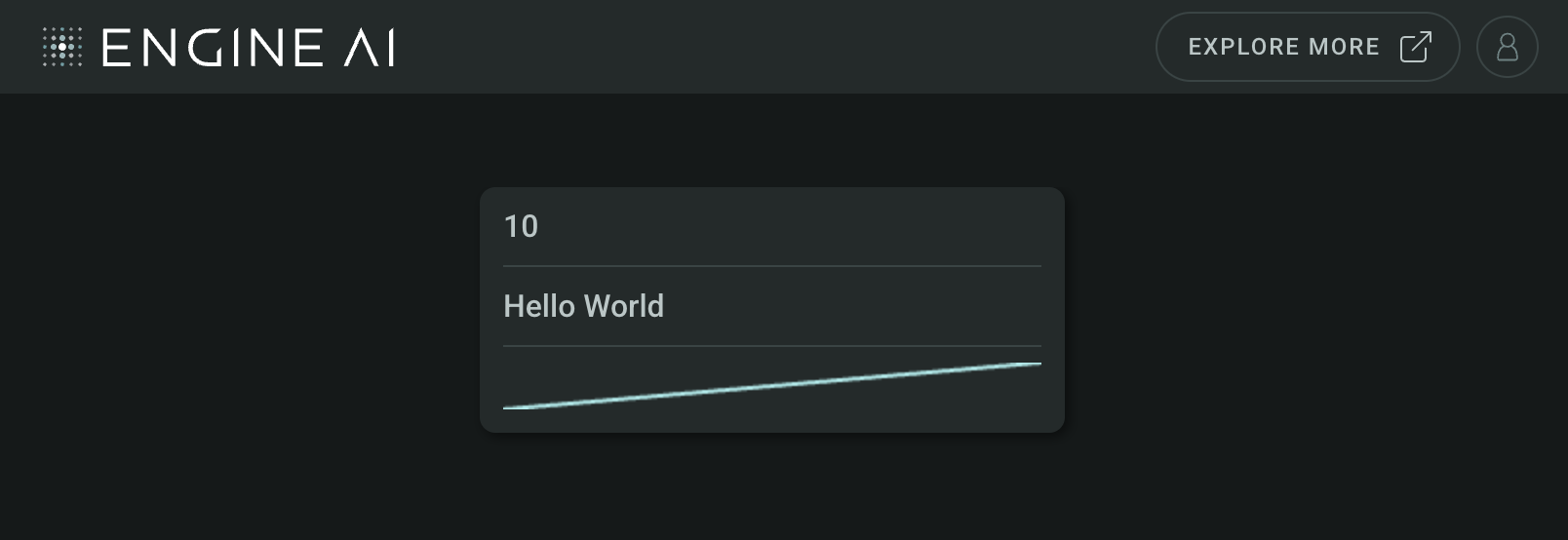

Create a Tile widget with vertical orientation

from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import tile

data = {
    "number": 10,
    "text": "Hello World",
    "line_chart": [1, 2, 3, 4, 5],
}

tile_widget = tile.Tile(
    data=data,
    orientation=tile.Orientation.VERTICAL,
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=tile_widget,
)

Header

Header(
    *,
    icon: TemplatedStringItem | DataField | None = None,
    title: TemplatedStringItem | DataField | None = None,
    item: HeaderNumberItem | None = None,
    link: Actions | None = None,
)

Spec for Tile Header.

Construct spec for the Tile Widget Header.

Parameters:

Name	Type	Description	Default
icon	TemplatedStringItem | DataField | None	str that will be icon of header.	None
title	TemplatedStringItem | DataField | None	str that will be title of header.	None
item	HeaderNumberItem | None	tile header number item.	None
link	Actions | None	action widget link spec.	None

Example:

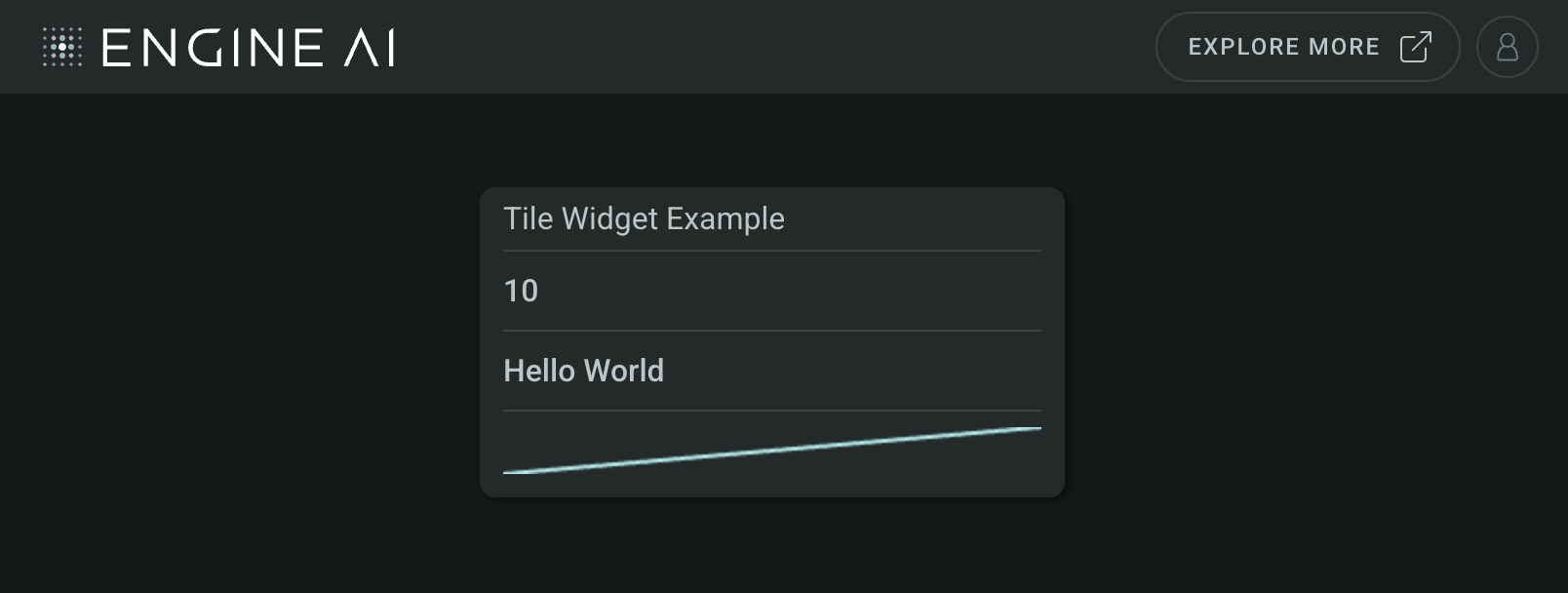

Create a Tile widget with a header

from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import tile

data = {
    "number": 10,
    "text": "Hello World",
    "line_chart": [1, 2, 3, 4, 5],
}

tile_widget = tile.Tile(
    data=data,
    header=tile.Header(title="Tile Widget Example"),
    orientation=tile.Orientation.VERTICAL,
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=tile_widget,
)

HeaderNumberItem

HeaderNumberItem(
    *,
    value_key: TemplatedStringItem,
    formatting: NumberFormatting | None = None,
    label: TemplatedStringItem | DataField | None = None,
    styling: TileHeaderNumberStyling | None = None,
)

Spec for Tile Header Number Item.

Construct spec for the Tile Header Number Item class.

Parameters:

Name	Type	Description	Default
value_key	TemplatedStringItem	key in data that will have the values used by the item.	required
formatting	NumberFormatting | None	formatting spec.	None
label	TemplatedStringItem | DataField | None	label the item values.	None
styling	TileHeaderNumberStyling | None	styling spec for number header item.	None

NumberStylingChip

NumberStylingChip(
    *,
    color_spec: ColorSpec,
    data_column: TemplatedStringItem | None = None,
)

Spec for Number Chip Styling class.

Construct spec for Number Chip Styling.

Parameters:

Name	Type	Description	Default
color_spec	ColorSpec	specs for color.	required
data_column	Optional[TemplatedStringItem]	styling value key. Defaults to None.	None

NumberStylingDot

NumberStylingDot(
    *,
    color_spec: ColorSpec,
    data_column: TemplatedStringItem | None = None,
)

Spec for Number Dot Styling class.

Construct spec for Number Dot Styling.

Parameters:

Name	Type	Description	Default
color_spec	ColorSpec	specs for color.	required
data_column	Optional[TemplatedStringItem]	styling value key.	None

NumberStylingFont

NumberStylingFont(
    *,
    color_spec: ColorSpec,
    data_column: TemplatedStringItem | None = None,
)

Spec for Number Font Styling class.

Construct spec for Number Font Styling.

Parameters:

Name	Type	Description	Default
color_spec	Optional[ColorSpec	specs for color.	required
data_column	Optional[TemplatedStringItem]	styling value key. Defaults to None.	None

Items

NumberItem

NumberItem(
    *,
    data_column: TemplatedStringItem,
    formatting: NumberFormatting | None = None,
    label: TemplatedStringItem | DataField | None = None,
    required: bool = True,
    styling: TileNumberStyling | None = None,
)

Spec for Tile Number Item.

Construct spec for the Tile Number Item class.

Parameters:

Name	Type	Description	Default
data_column	TemplatedStringItem	key in data that will have the values used by the item.	required
formatting	NumberFormatting | None	formatting spec.	None
label	TemplatedStringItem | DataField | None	str that will label the item values.	None
required	bool	Flag to make Number item mandatory. If required is True and no Data the widget will show an error. If required is False and no Data, the item is not shown.	True
styling	TileNumberStyling | None	styling spec for number item.	None

Example:

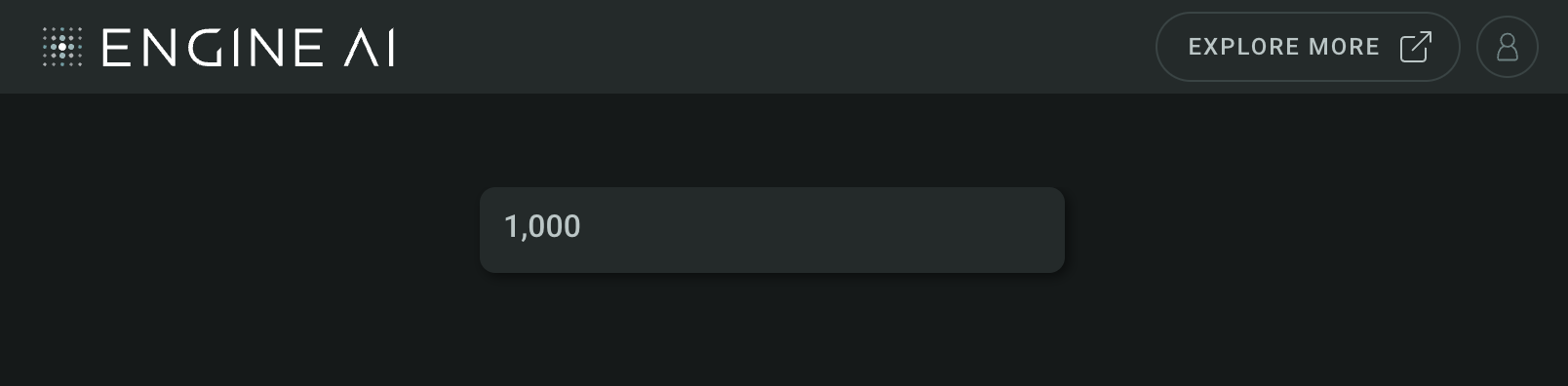

Create a Tile widget with a number item

import pandas as pd

from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import tile

data = pd.DataFrame(
    [
        {
            "tile_number_item": 1000,
        }
    ]
)

tile_widget = tile.Tile(
    data=data,
    items=[tile.NumberItem(data_column="tile_number_item")],
    orientation=tile.Orientation.VERTICAL,
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=tile_widget,
)

TextItem

TextItem(
    *,
    data_column: TemplatedStringItem,
    formatting: TextFormatting | None = None,
    label: TemplatedStringItem | DataField | None = None,
    required: bool = True,
    styling: TileTextStyling | None = None,
)

Spec for Tile content text Item.

Construct spec for the Tile Text Item class.

Parameters:

Name	Type	Description	Default
data_column	TemplatedStringItem	key in data that will have the valuesused by the item.	required
formatting		formatting spec.	None
label	TemplatedStringItem | DataField | None	str that will label the item values.	None
required	bool	Flag to make Number item mandatory. If required is True and no Data the widget will show an error. If required is False and no Data, the item is not shown.	True
styling	TileTextStyling | None	styling spec for text item.spec for a fixed reference line.	None

Example:

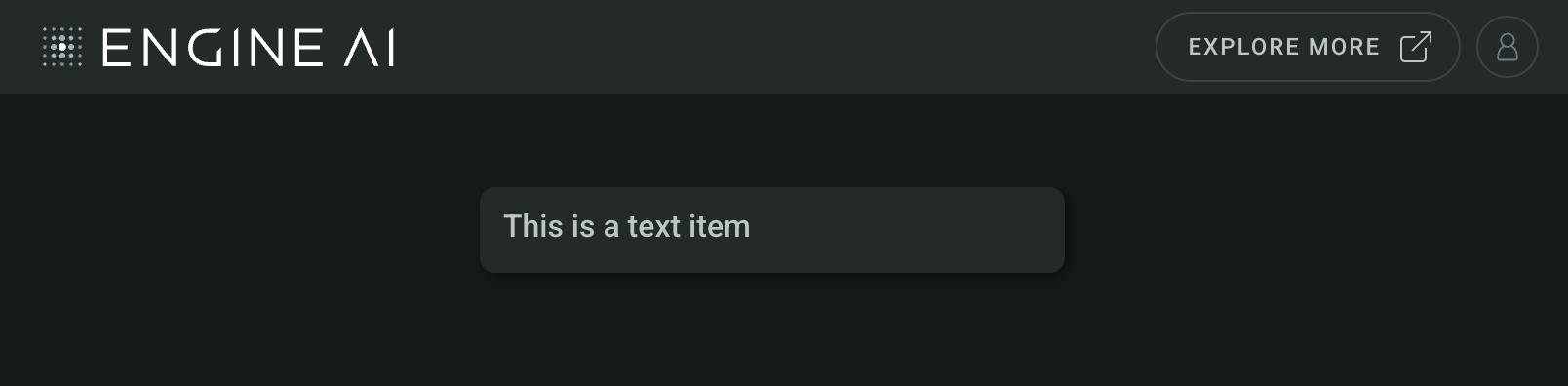

Create a Tile widget with a text item

import pandas as pd

from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import tile

data = pd.DataFrame(
    [
        {
            "text_item_data": "This is a text item",
        }
    ]
)

tile_widget = tile.Tile(
    data=data,
    items=[tile.TextItem(data_column="text_item_data")],
    orientation=tile.Orientation.VERTICAL,
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=tile_widget,
)

DateItem

DateItem(
    *,
    data_column: TemplatedStringItem,
    formatting: DateTimeFormatting | None = None,
    label: TemplatedStringItem | DataField | None = None,
    required: bool = True,
)

Spec for Tile Date Item.

Construct spec for the Tile Date Item class.

Parameters:

Name	Type	Description	Default
data_column	TemplatedStringItem	key in data that will have the values used by the item.	required
formatting	DateTimeFormatting | None	formatting spec.	None
label	TemplatedStringItem | DataField | None	str that will label the item values.	None
required	bool	Flag to make Number item mandatory. If required is True and no Data the widget will show an error. If required is False and no Data, the item is not shown.	True

Example:

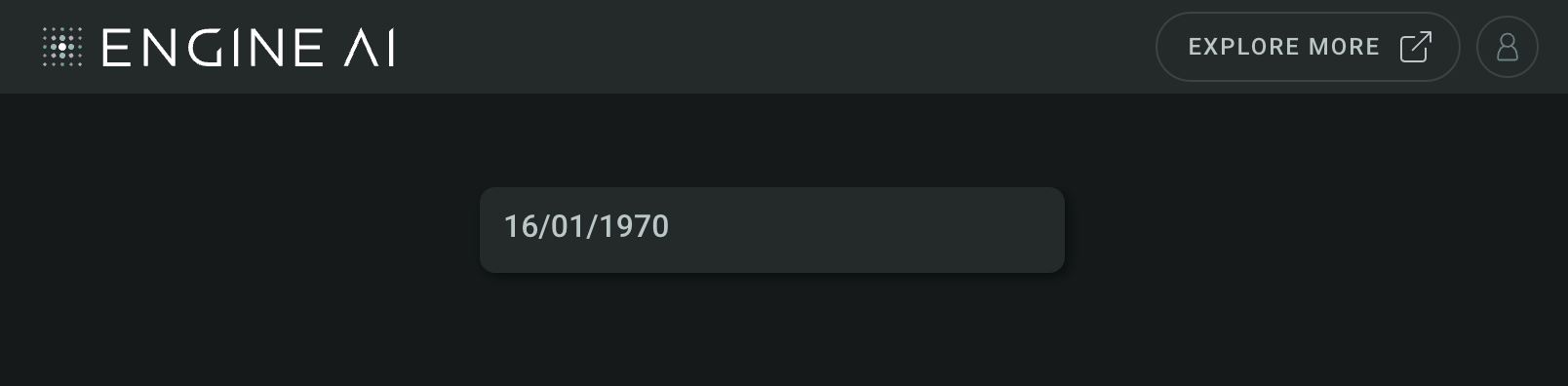

Create a Tile widget with a date item

import pandas as pd
from datetime import datetime as dt

from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import tile

data = pd.DataFrame(
    [
        {
            "date_key": dt(2013, 2, 1).timestamp(),
        }
    ]
)

tile_widget = tile.Tile(
    data=data,
    items=[tile.DateItem(data_column="date_key")],
    orientation=tile.Orientation.VERTICAL,
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=tile_widget,
)

LineChartItem

LineChartItem(
    *,
    data_column: TemplatedStringItem,
    reference_line: int | float | DataField | None = None,
    styling: Palette | LineChartItemStyling | None = None,
    formatting: NumberFormatting | None = None,
    label: TemplatedStringItem | DataField | None = None,
    tooltip: ChartTooltip | None = None,
    required: bool = True,
)

Spec for Tile Line Chart Item.

Construct spec for the TileLineChartItem class.

Parameters:

Name	Type	Description	Default
data_column	TemplatedStringItem	key in data that will have the values used by the item.	required
reference_line	int | float | DataField | None	spec for a fixed reference line.	None
styling	Palette | LineChartItemStyling | None	styling spec for item charts.	None
formatting	NumberFormatting | None	formatting spec.	None
label	TemplatedStringItem | DataField | None	label the item values.	None
tooltip	ChartTooltip | None	specs for tooltip.	None
required	bool	Flag to make Number item mandatory. If required is True and no Data the widget will show an error. If required is False and no Data, the item is not shown.	True

Example:

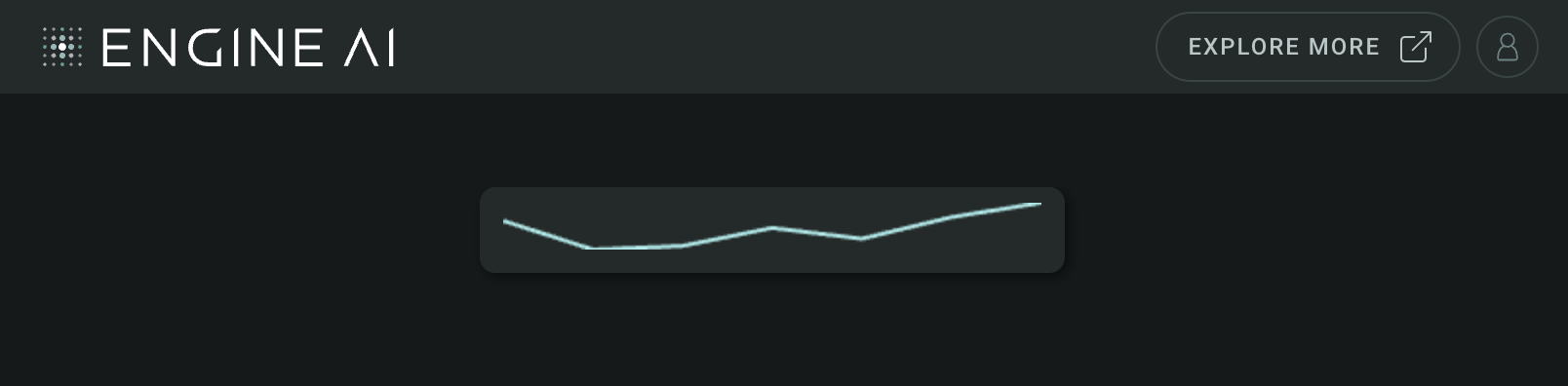

Create a Tile widget with a line chart item

import pandas as pd

from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import tile

data = pd.DataFrame(
    [
        {
            "value_column_line": [10, 2, 3, 8, 5, 11, 15],
        }
    ]
)

tile_widget = tile.Tile(
    data=data,
    items=[tile.LineChartItem(data_column="value_column_line")],
    orientation=tile.Orientation.VERTICAL,
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=tile_widget,
)

ColumnChartItem

ColumnChartItem(
    *,
    data_column: TemplatedStringItem,
    reference_line: int | float | DataField | None = None,
    styling: Palette | ColumnChartItemStyling | None = None,
    formatting: NumberFormatting | None = None,
    label: TemplatedStringItem | DataField | None = None,
    tooltip: ChartTooltip | None = None,
    required: bool = True,
)

Spec for Tile Column Chart Item.

Construct spec for the TileColumnChartItem class.

Parameters:

Name	Type	Description	Default
reference_line	int | float | DataField | None	spec for a fixed reference line.	None
styling	Palette | ColumnChartItemStyling | None	styling spec for item charts.	None
data_column	TemplatedStringItem	key in data that will have the values used by the item.	required
formatting	NumberFormatting | None	formatting spec.	None
label	TemplatedStringItem | DataField | None	label the item values.	None
tooltip	ChartTooltip | None	specs for tooltip.	None
required	bool	Flag to make Number item mandatory. If required is True and no Data the widget will show an error. If required is False and no Data, the item is not shown.	True

Example:

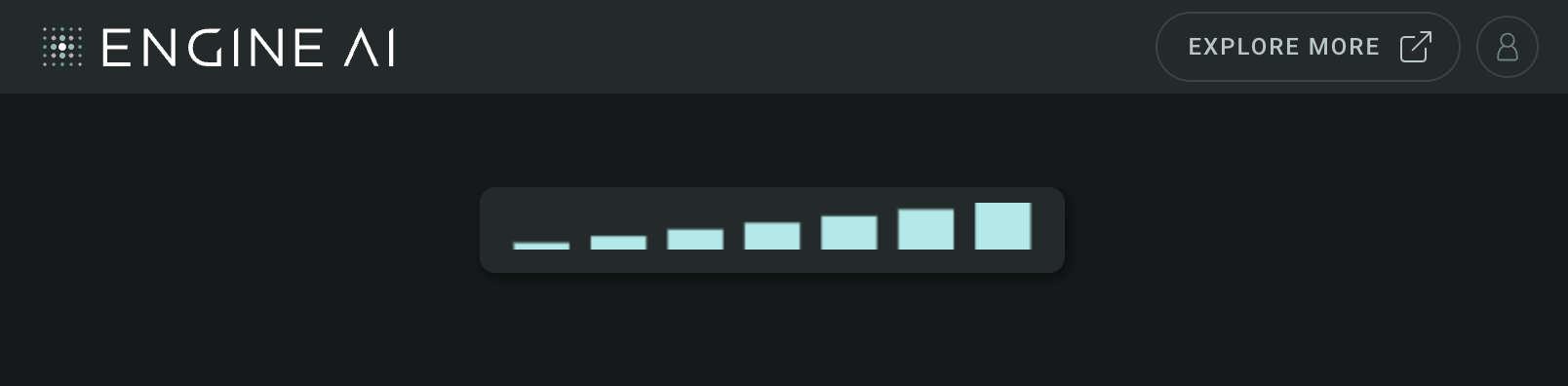

Create a Tile widget with a column chart item

import pandas as pd

from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import tile

data = pd.DataFrame(
    [
        {
            "value_column": [1, 2, 3, 4, 5, 6, 7],
        }
    ]
)

tile_widget = tile.Tile(
    data=data,
    items=[tile.ColumnChartItem(data_column="value_column")],
    orientation=tile.Orientation.VERTICAL,
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=tile_widget,
)

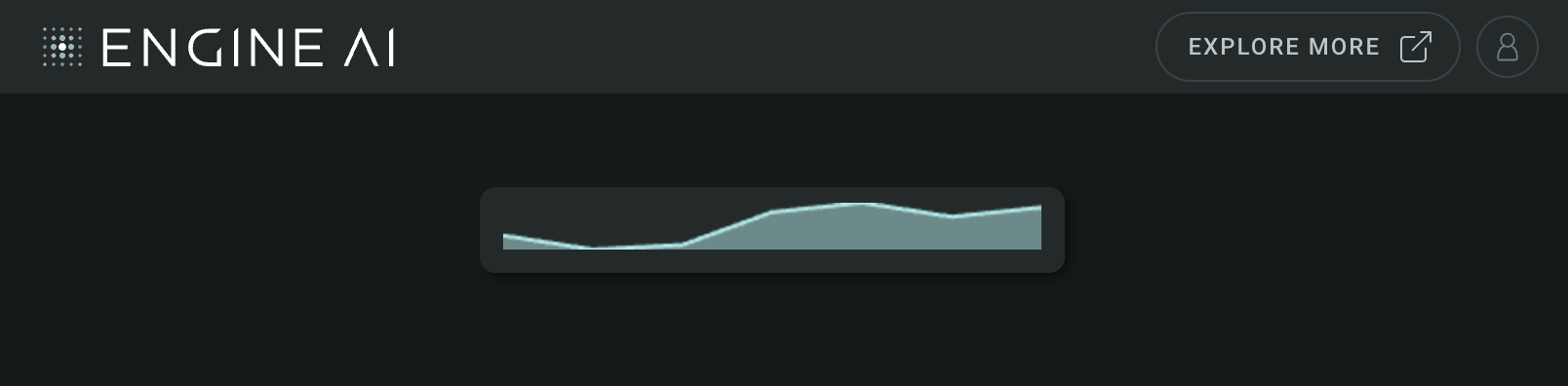

AreaChartItem

AreaChartItem(
    *,
    data_column: TemplatedStringItem,
    reference_line: int | float | DataField | None = None,
    styling: Palette | AreaChartItemStyling | None = None,
    formatting: NumberFormatting | None = None,
    label: TemplatedStringItem | DataField | None = None,
    tooltip: ChartTooltip | None = None,
    required: bool = True,
)

Spec for Tile Area Chart Item.

Construct spec for the TileAreaChartItem class.

Parameters:

Name	Type	Description	Default
reference_line	int | float | DataField | None	spec for a fixed reference line.	None
styling	Palette | AreaChartItemStyling | None	styling spec for item charts.	None
data_column	TemplatedStringItem	key in data that will have the values used by the item.	required
formatting	NumberFormatting | None	formatting spec.	None
label	TemplatedStringItem | DataField | None	str that will label the item values.	None
tooltip	ChartTooltip | None	specs for tooltip.	None
required	bool	Flag to make Number item mandatory. If required is True and no Data the widget will show an error. If required is False and no Data, the item is not shown.	True

Example:

Create a Tile widget with an area chart item

import pandas as pd

from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import tile

data = pd.DataFrame(
    [
        {
            "value_column_area": [5, 2, 3, 10, 12, 9, 11],
        }
    ]
)

tile_widget = tile.Tile(
    data=data,
    items=[tile.AreaChartItem(data_column="value_column_area")],
    orientation=tile.Orientation.VERTICAL,
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=tile_widget,
)

StackedBarChartItem

StackedBarChartItem(
    *,
    data_column: TemplatedStringItem,
    bar_label_key: TemplatedStringItem,
    styling: Palette
    | StackedBarChartItemStyling
    | None = None,
    formatting: NumberFormatting | None = None,
    label: TemplatedStringItem | DataField | None = None,
    required: bool = True,
)

Spec for Tile Stack Bar Chart Item.

Construct spec for the TileColumnChartItem class.

Parameters:

Name	Type	Description	Default
data_column	TemplatedStringItem	key in data that will have the values used by the item.	required
bar_label_key	TemplatedStringItem	key in data that will have the labels used by each bar.	required
styling	Palette | StackedBarChartItemStyling | None	styling spec for item charts.	None
formatting	NumberFormatting | None	formatting spec.	None
label	TemplatedStringItem | DataField | None	str that will label the item values.	None
required	bool	Flag to make Number item mandatory. If required is True and no Data the widget will show an error. If required is False and no Data, the item is not shown.	True

Example:

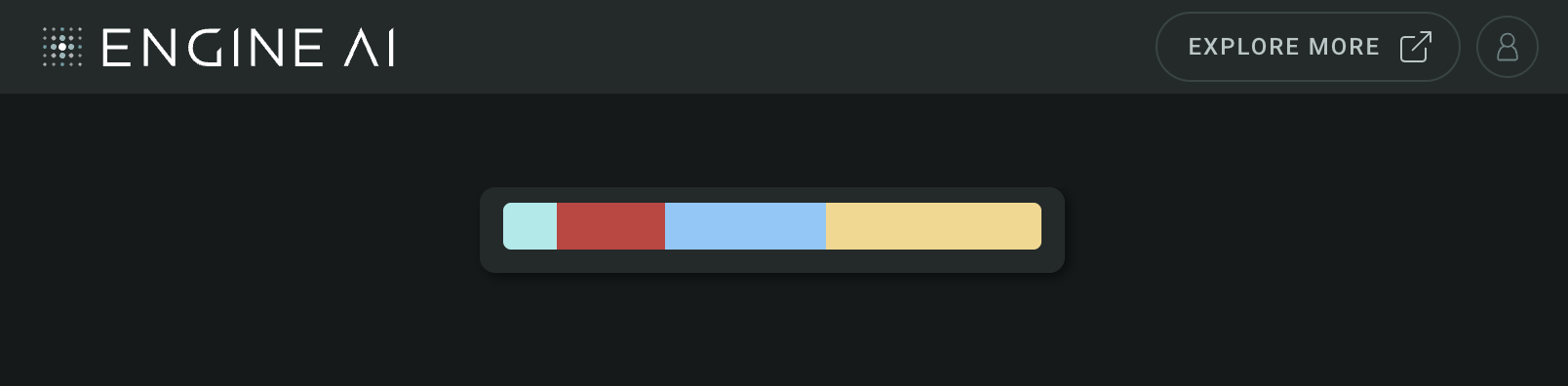

Create a Tile widget with a stacked bar chart item

import pandas as pd

from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import tile
from engineai.sdk.dashboard.styling.color.palette import Palette
from engineai.sdk.dashboard.styling.color.discrete_map import DiscreteMap
from engineai.sdk.dashboard.styling.color.discrete_map import DiscreteMapValueItem

data = pd.DataFrame(
    [
        {
            "stacked_bar_series": [1, 2, 3, 4],
            "stacked_bar_labels": ["a", "b", "c", "d"],
        }
    ]
)

tile_widget = tile.Tile(
    data=data,
    items=[
        tile.StackedBarChartItem(
            data_column="stacked_bar_series",
            bar_label_key="stacked_bar_labels",
            styling=tile.StackedBarChartItemStyling(
                color_spec=DiscreteMap(
                    DiscreteMapValueItem(value=1, color=Palette.AQUA_GREEN),
                    DiscreteMapValueItem(value=2, color=Palette.RUBI_RED),
                    DiscreteMapValueItem(value=3, color=Palette.BABY_BLUE),
                    DiscreteMapValueItem(value=4, color=Palette.BANANA_YELLOW),
                ),
                data_column="stacked_bar_series",
            ),
        )
    ],
    orientation=tile.Orientation.VERTICAL,
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=tile_widget,
)

Items Styling

NumberStylingArrow

NumberStylingArrow(
    *,
    data_column: TemplatedStringItem | None = None,
    color_divergent: Divergent,
)

Spec for Number Arrow Styling class.

Construct spec Number Arrow Styling.

Parameters:

Name	Type	Description	Default
color_divergent	ColorDivergent	specs for color.	required
data_column	TemplatedStringItem	styling value key.	None

NumberStylingChip

NumberStylingChip(
    *,
    color_spec: ColorSpec,
    data_column: TemplatedStringItem | None = None,
)

Spec for Number Chip Styling class.

Construct spec for Number Chip Styling.

Parameters:

Name	Type	Description	Default
color_spec	ColorSpec	specs for color.	required
data_column	Optional[TemplatedStringItem]	styling value key. Defaults to None.	None

NumberStylingDot

NumberStylingDot(
    *,
    color_spec: ColorSpec,
    data_column: TemplatedStringItem | None = None,
)

Spec for Number Dot Styling class.

Construct spec for Number Dot Styling.

Parameters:

Name	Type	Description	Default
color_spec	ColorSpec	specs for color.	required
data_column	Optional[TemplatedStringItem]	styling value key.	None

NumberStylingFont

NumberStylingFont(
    *,
    color_spec: ColorSpec,
    data_column: TemplatedStringItem | None = None,
)

Spec for Number Font Styling class.

Construct spec for Number Font Styling.

Parameters:

Name	Type	Description	Default
color_spec	Optional[ColorSpec	specs for color.	required
data_column	Optional[TemplatedStringItem]	styling value key. Defaults to None.	None

TextStylingDot

TextStylingDot(
    *,
    color_spec: ColorSpec | None = None,
    data_column: TemplatedStringItem | None = None,
)

Spec for Text Dot Styling Class.

Construct spec for Text Dot Styling.

Parameters:

Name	Type	Description	Default
color_spec	Optional[ColorSpec	specs for color.	None
data_column	Optional[TemplatedStringItem]	styling value key. Defaults to None.	None

TextStylingFont

TextStylingFont(
    *,
    color_spec: ColorSpec | None = None,
    data_column: TemplatedStringItem | None = None,
)

Spec for Text Font Styling Class.

Construct spec for Text Font Styling.

Parameters:

Name	Type	Description	Default
color_spec	ColorSpec	specs for color.	None
data_column	Optional[TemplatedStringItem]	styling value key. Defaults to None.	None

LineChartItemStyling

LineChartItemStyling(
    *,
    color_spec: ColorSpec | None = None,
    data_column: TemplatedStringItem | None = None,
)

Spec for styling used by Spark Line Chart Item.

ColumnChartItemStyling

ColumnChartItemStyling(
    *,
    color_spec: ColorSpec | None = None,
    data_column: TemplatedStringItem | None = None,
)

Spec for styling used by Spark Column Chart Item.

AreaChartItemStyling

AreaChartItemStyling(
    *,
    color_spec: ColorSpec | None = None,
    data_column: TemplatedStringItem | None = None,
)

Spec for styling used by Spark Area Chart Item.

StackedBarChartItemStyling

StackedBarChartItemStyling(
    *,
    color_spec: ColorSpec | None = None,
    data_column: TemplatedStringItem | None = None,
)

Spec for styling used by Stacked Bar Chart Item.

Enums

Orientation

Options for orientation of Tile Widget.

Attributes:

Name	Type	Description
VERTICAL	str	Vertical orientation.
HORIZONTAL	str	Horizontal orientation.

Types

Actions module-attribute

Actions = UrlLink | ExternalEvent

TileContentItem module-attribute

TileContentItem = (
    NumberItem
    | DateItem
    | TextItem
    | AreaChartItem
    | ColumnChartItem
    | LineChartItem
    | StackedBarChartItem
)

TileHeaderNumberStyling module-attribute

TileHeaderNumberStyling = (
    NumberStylingChip | NumberStylingDot | NumberStylingFont
)

TileNumberStyling module-attribute

TileNumberStyling = (
    NumberStylingArrow
    | NumberStylingChip
    | NumberStylingDot
    | NumberStylingFont
)

TileTextStyling module-attribute

TileTextStyling = TextStylingDot | TextStylingFont
