Select#

Select #

Select(
    data: DataType | DataFrame,
    *,
    id_column: TemplatedStringItem = "id",
    default_selection: str | None = None,
    label_column: TemplatedStringItem | None = None,
    widget_id: str | None = None,
    label: TemplatedStringItem = "",
    label_outside: bool = True,
    group_column: TemplatedStringItem | None = None,
    show_group_when_selected: bool = False,
)

Construct select widget.

Construct a select widget for choosing from a list of options, with options to customize the data source, ID column, default selection, label column, widget ID, label text, grouping, and label display options.

Constructor for Select widget.

Parameters:

Name	Type	Description	Default
`data`	`DataType \| DataFrame`	data to be used by widget. Accepts storages as well as raw data.	required
`widget_id`	`str \| None`	unique widget id in a dashboard.	`None`
`id_column`	`TemplatedStringItem`	name of column in pandas dataframe(s) used for the id associated with each entry.	`'id'`
`label_column`	`TemplatedStringItem \| None`	name of column in pandas dataframe(s) used for the value displayed for each entry.	`None`
`default_selection`	`str \| None`	id of entry that is selected by default.	`None`
`label`	`TemplatedStringItem`	label shown before select options.	`''`
`label_outside`	`bool`	flag that inserts the `label` parameter outside the select dropdown.	`True`
`group_column`	`TemplatedStringItem \| None`	name of column in pandas dataframe(s) used to define the entries groups.	`None`
`show_group_when_selected`	`bool`	flag will append the group name into entry label.	`False`

Examples:#

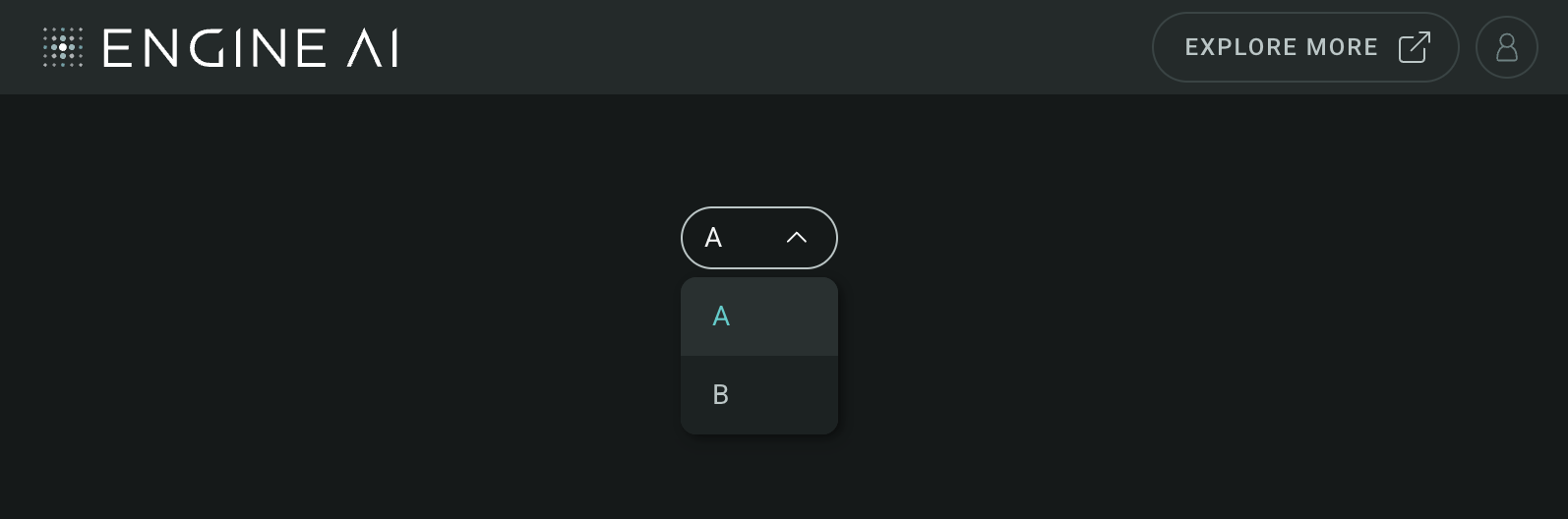

Create a minimal Select widget

import pandas as pd
from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import select

data = pd.DataFrame(
    {
        "id": ["A", "B"],
    },
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=select.Select(data=data),
)

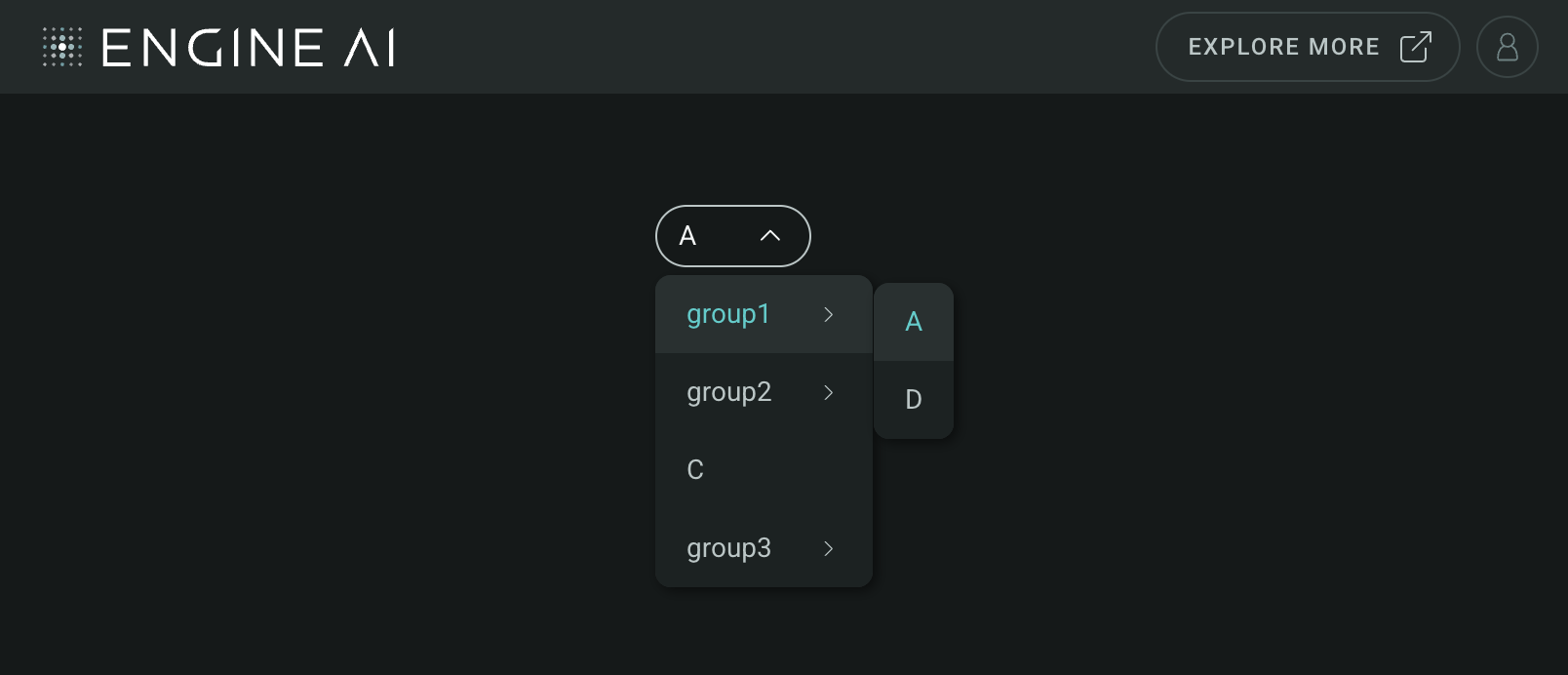

Create Select widget with groups

import pandas as pd
from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import select

data = pd.DataFrame(
    {
        "id": ["A", "B", "C", "D", "E"],
        "group": ["group1", "group2", None, "group1", "group3"],
    },
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=select.Select(data=data, group_column="group"),
)
