Search(
    *,
    data: DataType | DataFrame,
    selected_text_column: TemplatedStringItem,
    widget_id: str | None = None,
    items: TemplatedStringItem
    | list[ResultItemType]
    | None = None,
    placeholder: TemplatedStringItem | None = None,
)

Construct search widget.

Construct a search widget for searching through data, allowing customization of selected text column, widget ID, search items, and placeholder text.

Constructor for Search widget.

Parameters:

Name	Type	Description	Default
data	DataType | DataFrame	data source for the widget.	required
selected_text_column	TemplatedStringItem	Column with information to show when the option is selected.	required
widget_id	str | None	widget ID.	None
items	TemplatedStringItem | list[ResultItemType] | None	List of ResultItemTypes to be displayed in the search results.	None
placeholder	TemplatedStringItem | None	Default text to show before searching.	None

Example:

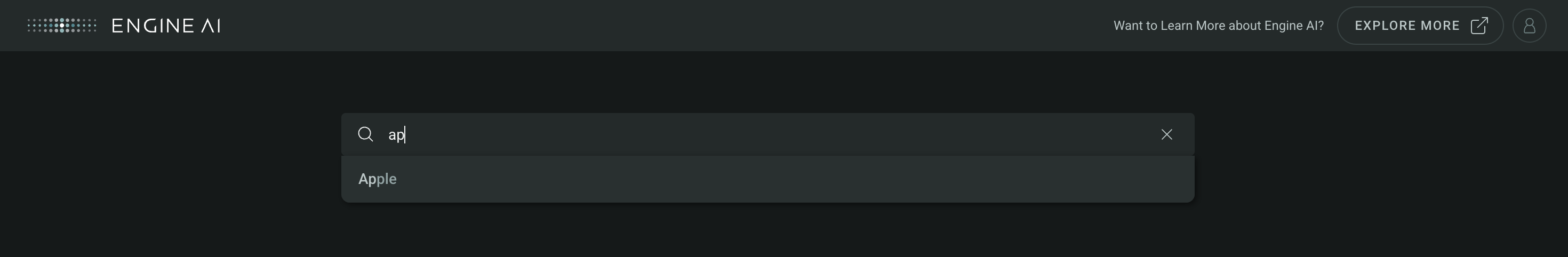

Create a minimal Search Widget

import pandas as pd
from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets import search

data = pd.DataFrame(
    data=[
        {"ticker": "AAPL-NAS", "name": "Apple", "score": 10},
        {"ticker": "MSFT-NAS", "name": "Microsoft", "score": 5},
    ]
)

search_widget = search.Search(
    data=data,
    selected_text_column="name",
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=search_widget,
)

Items

ResultTextItem

ResultTextItem(
    data_column: TemplatedStringItem,
    searchable: bool = True,
    styling: Palette | ResultTextStyling | None = None,
)

Define text item for search results.

Define a text item for search results, specifying the data column to display, whether it's searchable, and styling options.

Constructor for ResultTextItem.

Parameters:

Name	Type	Description	Default
data_column	TemplatedStringItem	Column name in pandas DataFrame used for search result.	required
searchable	bool	Flag that makes the result searchable.	True
styling	Palette | ResultTextStyling | None	Specs for Search Result styling.	None

ResultTextStyling

ResultTextStyling(
    *,
    color_spec: ColorSpec | None = None,
    data_column: TemplatedStringItem | None = None,
)

Style text search result columns.

Specify styling options for text search result columns, including color specifications and data column mapping.

Parameters:

Name	Type	Description	Default
color_spec	Optional[ColorSpec]	Spec for coloring columns.	None
data_column	Optional[TemplatedStringItem]	Name of column in pandas dataframe(s) used for color spec if a gradient is used. Optional for single colors.	None

Example:

Create a search widget with a styled result text item

import pandas as pd
from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.styling import color
from engineai.sdk.dashboard.widgets import search

data = pd.DataFrame(
    data=[
        {"ticker": "AAPL-NAS", "name": "Apple", "score": 10},
        {"ticker": "MSFT-NAS", "name": "Microsoft", "score": 5},
    ]
)

search_widget = search.Search(
    data=data,
    selected_text_column="name",
    items=[
        search.ResultTextItem(
            data_column="ticker",
            styling=search.ResultTextStyling(
                color_spec=color.Palette.BUBBLEGUM_PINK,
            ),
        ),
    ],
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=search_widget,
)

ResultNumberItem

ResultNumberItem(
    data_column: TemplatedStringItem,
    formatting: NumberFormatting | None = None,
    styling: Palette | ResultNumberStyling | None = None,
)

Define number item for search results.

Define a number item for search results, specifying the data column to display, formatting options, and styling options.

Constructor for ResultNumberItem.

Parameters:

Name	Type	Description	Default
data_column	TemplatedStringItem	Column name in pandas DataFrame used for search result.	required
formatting	NumberFormatting | None	formatting spec.	None
styling	Palette | ResultNumberStyling | None	Specs for Search Result styling.	None

ResultNumberStyling

ResultNumberStyling(
    *,
    color_spec: ColorSpec | None = None,
    data_column: TemplatedStringItem | None = None,
)

Style number search result columns.

Specify styling options for number search result columns, including color specifications and data column mapping.

Examples:

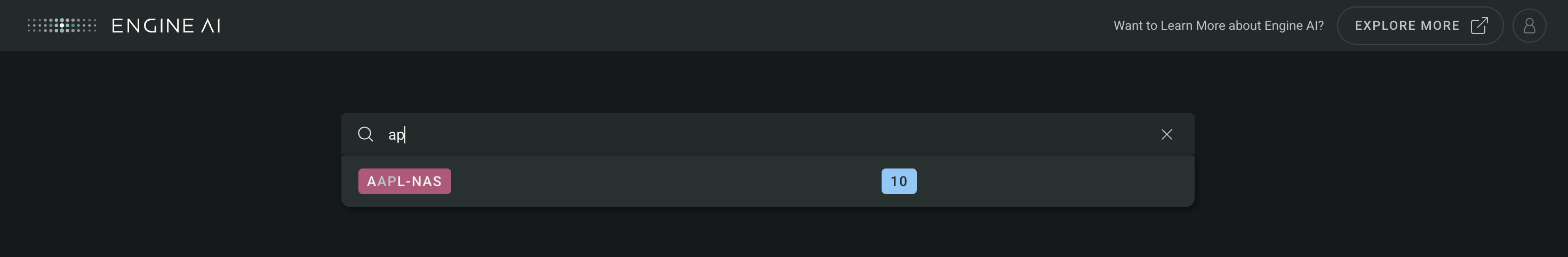

Create a search widget with a styled result number item

import pandas as pd
from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.styling import color
from engineai.sdk.dashboard.widgets import search

data = pd.DataFrame(
    data=[
        {"ticker": "AAPL-NAS", "name": "Apple", "score": 10},
        {"ticker": "MSFT-NAS", "name": "Microsoft", "score": 5},
    ]
)

search_widget = search.Search(
    data=data,
    selected_text_column="name",
    items=[
        search.ResultTextItem(
            data_column="ticker",
            styling=search.ResultTextStyling(
                color_spec=color.Palette.BUBBLEGUM_PINK,
            ),
        ),
        search.ResultNumberItem(
            data_column="score",
            styling=search.ResultNumberStyling(
                color_spec=color.Palette.BABY_BLUE,
            ),
        ),
    ],
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=search_widget,
)

Types

ResultItemType module-attribute

ResultItemType = ResultTextItem | ResultNumberItem
