Sankey

SankeyPlayback

SankeyPlayback(
    *,
    series_name: str = "series",
    nodes: Nodes,
    connections: Connections,
    playback: Playback,
    widget_id: str | None = None,
    formatting: NumberFormatting | None = None,
    title: WidgetTitleType = "",
)

Spec for Base Sankey Playback widget.

Construct spec for base Sankey Playback widget.

Parameters:

Name	Type	Description	Default
series_name	str	name shown next to values in nodes and connections.	'series'
nodes	Nodes	spec for nodes.	required
connections	Connections	spec for connections.	required
playback	Playback	specs for Playback component.	required
widget_id	str | None	unique widget id in a dashboard.	None
formatting	NumberFormatting | None	formatting spec for value associated with nodes and connections.	None
title	WidgetTitleType	title of widget can be either a string (fixed value) or determined by a value from another widget using a WidgetLink.	''

Example:

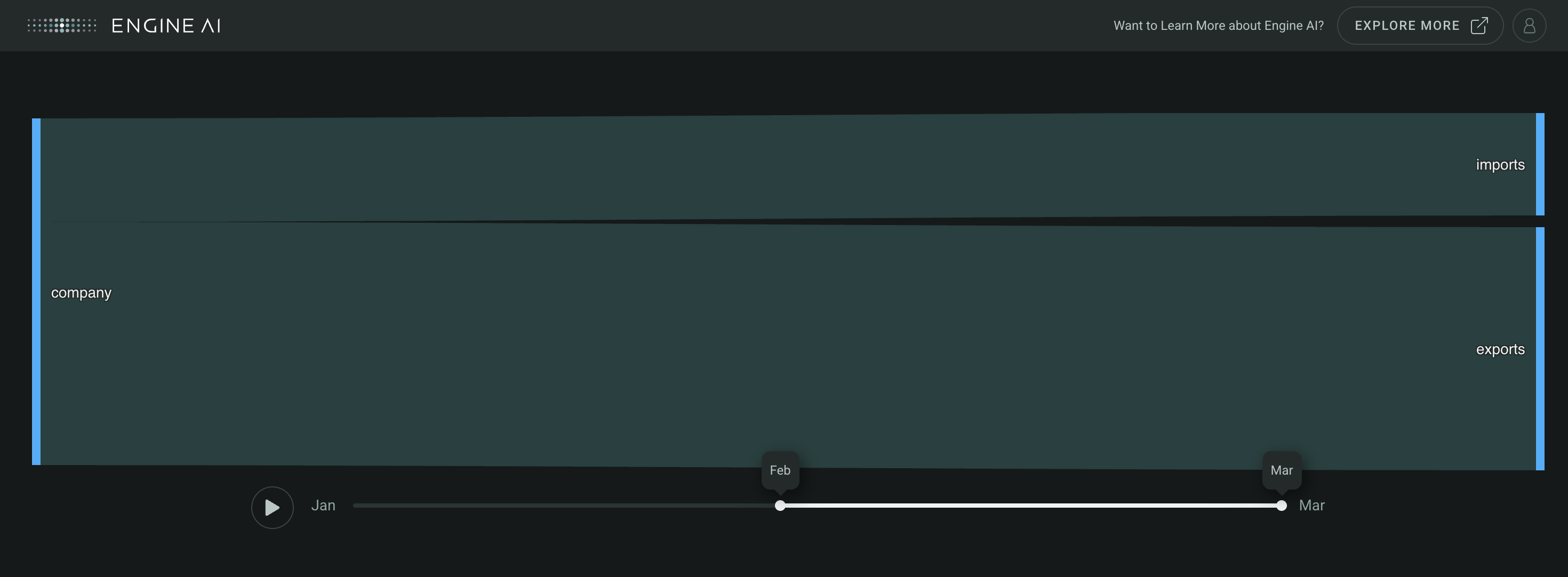

Create a minimal Sankey Playback widget with three frames

import pandas as pd
from engineai.sdk.dashboard.dashboard import Dashboard
from engineai.sdk.dashboard.widgets.sankey import playback

nodes = {}
connections = {}
frames = []

data = [[0.76, 0.24], [0.23, 0.54], [0.23, 0.11]]

for month, values in zip(["Jan", "Feb", "Mar"], data):
    nodes[month] = [{"id": "company"}, {"id": "imports"}, {"id": "exports"}]

    connections[month] = [
        {
            "from": "company",
            "to": "imports",
            "value": values[0],
        },
        {
            "from": "company",
            "to": "exports",
            "value": values[1],
        },
    ]

    frames.append({"id": month})

sankey_widget = playback.SankeyPlayback(
    nodes=playback.Nodes(
        data=nodes,
    ),
    connections=playback.Connections(
        data_column="value",
        data=connections,
    ),
    playback=playback.Playback(
        data=pd.DataFrame(data=frames),
    ),
)

Dashboard(
    workspace_slug="my-workspace",
    app_slug="my-app",
    slug="first-dashboard",
    content=sankey_widget,
)

Components

BaseConnections

ConnectionsStyling

ConnectionsStyling(
    *,
    color_spec: ColorSpec | None = None,
    data_column: TemplatedStringItem | None = None,
)

Spec to style connections in a Sankey widget.

Construct style spec for a node.

Parameters:

Name	Type	Description	Default
color_spec	ColorSpec | None	spec for coloring a node.	None
data_column	TemplatedStringItem | None	name of column in pandas dataframe(s) used for color spec if a gradient is used.	None

Raises:

Type	Description
SankeyDataColumnMissingError	if color_spec is DiscreteMap/Gradient and data_column has not been specified

BaseNodes

NodesStyling

NodesStyling(
    *,
    color_spec: ColorSpec | None = None,
    data_column: TemplatedStringItem | None = None,
    width: int = 8,
)

Spec to style nodes in a Sankey widget.

Construct style spec for a node.

Parameters:

Name	Type	Description	Default
color_spec	ColorSpec | None	spec for coloring a node.	None
data_column	TemplatedStringItem | None	name of column in pandas dataframe(s) used for color spec if a gradient is used.	None
width	int	width of nodes in pixels.	8

Raises:

Type	Description
SankeyDataColumnMissingError	if color_spec is DiscreteMap/Gradient and data_column has not been specified

Playback

Playback(
    *,
    id_column: str = "id",
    data: DataType | DataFrame,
    label_column: str | None = None,
    label_formatting: FormattingType | None = None,
    update_interval: int = 1,
    loop: bool = False,
    auto_play: bool = False,
    initial_state: InitialState | None = None,
)

Spec for Playback widget.

Construct spec for Playback widget.

Parameters:

Name	Type	Description	Default
id_column	str	Id Column to match the field in the Data for the Frame.	'id'
data	DataType | DataFrame	data for the widget. Can be a pandas dataframe or Storage object if the data is to be retrieved from a storage.	required
label_column	str | None	Label Column to match the field in the Data for the Frame Label.	None
label_formatting	FormattingType | None	Class to modify the Frame Label Formatting.	None
update_interval	int	Configuration for update interval.	1
loop	bool	Configuration for Loop.	False
auto_play	bool	Configuration for Auto Play.	False
initial_state	InitialState | None	Class to add an initial state.	None

InitialState

InitialState(
    *,
    start_frame_id: str | None = None,
    end_frame_id: str | None = None,
)

Spec for InitialState widget.

Construct spec for Playback Initial State widget.

Parameters:

Name	Type	Description	Default
start_frame_id	str | None	column in Pandas DataFrame to define the starting frame.	None
end_frame_id	str | None	column in Pandas DataFrame to define the ending frame.	None

Types

Connections module-attribute

Connections = BaseConnections[dict[str, DataFrame]]

Nodes module-attribute

Nodes = BaseNodes[dict[str, DataFrame]]
